AB Series Aluminum Body Filter-Regulator-Lubricator (FRL) Specifications

Specifications Filter Regulator
Part No. AFR1000 AFR2000
Description Filter-Regulator Filter-Regulator
Port Size (NPT) 1/8" 1/8"
Flow Rate (SCFM) 16 16
Filtration (Microns) 5-40 5-40
Regulating Range (PSI) 7 to 125 7 to 125
Operating Temperature (°F) 40-140 40-140
Max. Pressure(PSI) 150 150
Materials of Construction
Metal Body Aluminum Alloy (Epoxy Coated)
Plastic Bowl Polycarbonate
Body Shield Painted Steel
Filter Sintered Brass (40µ) or Plastic (5µ)

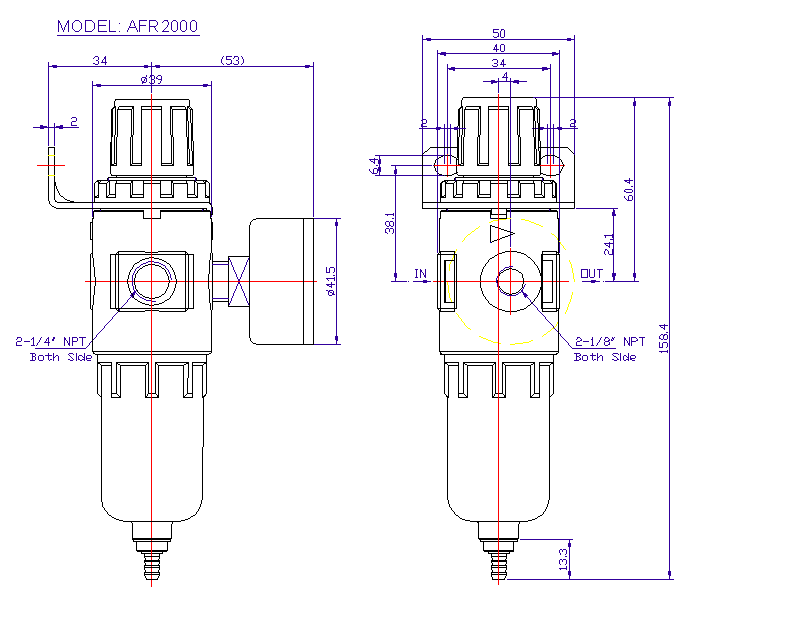

Dimensions: AFR2000 (Unit = mm)
