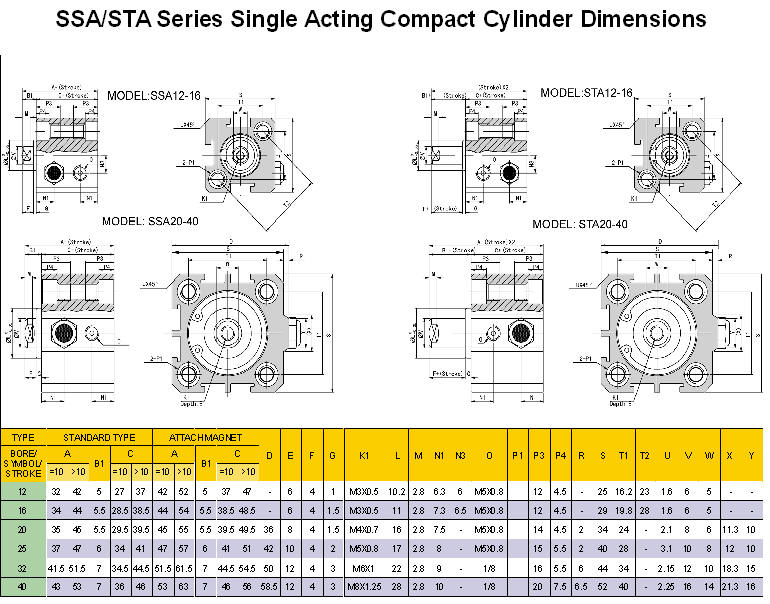

Compact Air Cylinder Dimensions

Click Picture to get dimensions & specifications
Order Numbering System 1   2 3 4 5 6 7 8

Model

 Type

Bore Size
(mm)

Stroke Length
(mm)

 Mounting Hardware Magnetic Piston Reed Switch Standard
Seal		 Shaft Thread




S

SA: Single Acting
DA: Double Acting

 12
16
20
25
32
40
50
63
80
100		 5 to 150

LB: Bottom Mount
FA: Front/Back Flange
CA: CLEVIS BRACKET with PIN
CB: CLEVIS BRACKET with PIN
TC: SWING BRACKET
I: ROD CLEVIS with PIN
Y: ROD CLEVIS with PIN
(See below for picture)



 NM: No Magnet
M: Magnetic Piston		 R: Reed Switch B: Buna-N Seal,
V: Viton Seal, 		F: Female Thread
M:Male Thread
Mounting Hardware FOOT REST FRONT/REAR FLANGE Mount CLEVIS BRACKET with PIN CLEVIS BRACKET with PIN SWING
BRACKET		 ROD CLEVIS with PIN ROD CLEVIS with PIN
Part No. LB FA CA CB TC I Y


Reed Switches Hall Effect Position Sensor

COMPACT AIR CYLINDER & MOUNTING HARDWARE  LIST PRICE
To Order: Specify  Style, Bore Size, Stroke Length, Options
