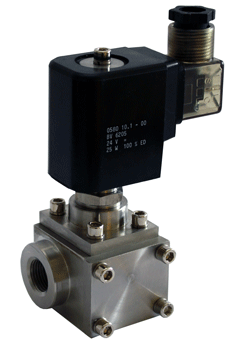

High Pressure Solenoid Valve Specifications & Dimensions: 2E100-250 Series
| Specifications |
 |
|
| Port & Mounting | Body Ported | |
| Action & Motion | Pilot, Normally Closed, Two Position, 2 Way | |
| Operating Pressure | 87 to 1450 PSI (Coil Wattage Dependent) | |
| Working Medium | Air, Gas, Liquid, Oil, Cryogens | |
| Operating Temperature | -40 to 356°F (-40 to 180°C) with non-freezing medium | |
| Coil Insulation & Protection Class | F Class, IP65 (CE Certification) | |
| Coil Duty Cycle | 100% ED | |
| Electrical Connection | D = DIN (with LED indicator, conduit terminal) G = Grommet (12" Lead Wire) |
|
| Body Material | Stainless Steel | |
| Seal Material | Teflon, Viton | |
| Armature Tube | Stainless Steel | |
| Plunger & Spring | Stainless Steel | |
| Lubrication | Not Required | |
Electrical Coil Connections
- To Connect a DIN Coil:
- Remove the Philips screw from the plastic housting & unplug from the DIN coil.
- Use the removed screw to push the terminal block out of the plastic DIN housing.
- Note the "1", "2", and ground "⏚" symbols.
- For DC DIN Coils, connect "1" to your positive lead and "2" to your negative lead.
- For AC DIN Coils, connect "1" to your HOT lead, "2" to your NEUTRAL lead, and "⏚" to your ground lead, if required.
- To Connect a Grommet Coil:
- For DC Coils, connect the red wire to your positive lead and the black wire to your negative lead.
- For AC Coils, connect the black wire to your HOT lead and the white wire to your NEUTRAL lead.
- For Coils provided with Molded Cables, the color of the wire indicates the type of lead:
- GREEN = Ground Wire
- BLUE = Positive or HOT Wire
- BROWN = Negative or Neutral Wire
