Air Actuated Ball Valve
KS/KD Series Stainless Steel Air Actuated Ball Valve Specifications and Dimensions

1. Materials of Constructions:

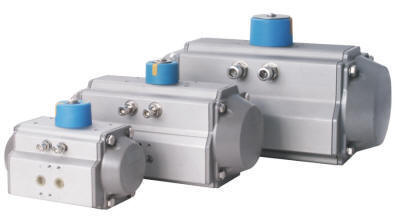

Air Actuator

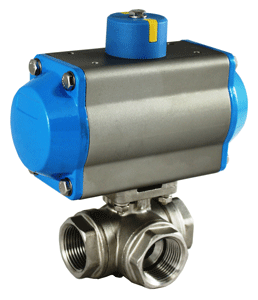

Actuated Valve            Actuated 3 Way Valve

KS Series Stainless Steel Air Actuated Ball Valve Specifications

Valve Body & Ball

316 Stainless Steel/CF8M

Seat Seals & Packing

PTFE

Service Medium

Air , Gas, Liquid, Steam, Water,

Operating Pressure

0-1000 PSI @ 100°F

Media Temperature

-60 to 450°F (-51 to 230 ºC)

Ambient Temperature

-4 to 176°F (-20 TO 80 ºC)

Maximum Viscosity

600 mm2/s

Installation Orientation

any Orientation

Controlling Medium

Air, Inert Gas

Controlling Pressure Range

45-120 PSI


      A. Single Acting

KS Series Single Acting  Stainless Steel Air Actuated Ball Valve
Part No. Port
(NPT)		 Specification Orifice
(mm)		 Inlet Above Valve
 Seat Pressure @ 100 °F		 Temperature Control Pressure

KS-3/8

 3/8" DN10 13 0-1000 PSI -60 to 450°F 65-120 PSI

KS-1/2

 1/2" DN15 13 0-1000 PSI -60 to 450°F 65-120 PSI

KS-3/4

 3/4" DN20 18 0-1000 PSI -60 to 450°F 65-120 PSI

KS-1

 1" DN25 24 0-1000 PSI -60 to 450°F 65-120 PSI

KS-1 1/4

 1 1/4" DN32 31 0-1000 PSI -60 to 450°F 65-120 PSI

KS-1 1/2

 1 1/2" DN40 35 0-1000 PSI -60 to 450°F 65-120 PSI

KS-2

 2" DN50 45 0-800 PSI -60 to 450°F 65-120 PSI

      B. Double Acting

KD Double Acting  Stainless Steel Air Actuated Ball Valve
Part No. Port
(NPT)		 Specification Orifice
(mm)		 Inlet Above Valve
 Seat Pressure @ 100 °F		 Temperature Control Pressure

KD-3/8

 3/8" DN10 13 0-1000 PSI -60 to 450°F 65-120 PSI

KD-1/2

 1/2" DN15 13 0-1000 PSI -60 to 450°F 65-120 PSI

KD-3/4

 3/4" DN20 18 0-1000 PSI -60 to 450°F 65-120 PSI

KD-1

 1" DN25 24 0-1000 PSI -60 to 450°F 65-120 PSI

KD-1 1/4

 1 1/4" DN32 31 0-1000 PSI -60 to 450°F 65-120 PSI

KD-1 1/2

 1 1/2" DN40 35 0-1000 PSI -60 to 450°F 65-120 PSI

KD-2

 2" DN50 45 0-800 PSI -60 to 450°F 65-120 PSI

Download STC Air Actuated Ball Valve Catalog
